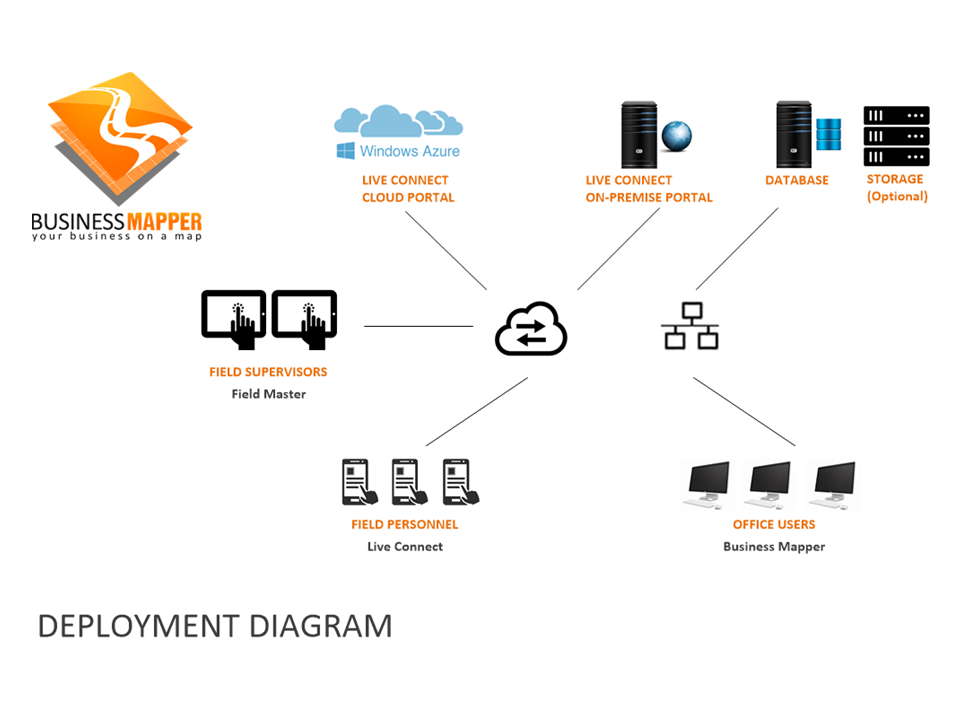

Deployment

Typical Business Mapper deployment requires a web-server for Live Connect.  The Live Connect Portal may also be hosted on Microsoft Azure.  Microsoft Azure has a very good uptime record, is cost-effective, and highly scalable.

Another advantage of Microsoft Azure is unlimited bandwidth going into its data center, this bandwidth is impractical for on-premise deployments.

The availability of the Live Connect Portal is critical, especially when a large number of field personnel are deployed to execute a survey. The cost of lost work-days can get really high on server down-time.

Contact Us

The hardware configuration illustrated below are typical deployments.  Sizing needs to be properly done to ensure the best fit.  Our technical resources will be glad to help you produce a bill of materials (BOM).  Contact us here.

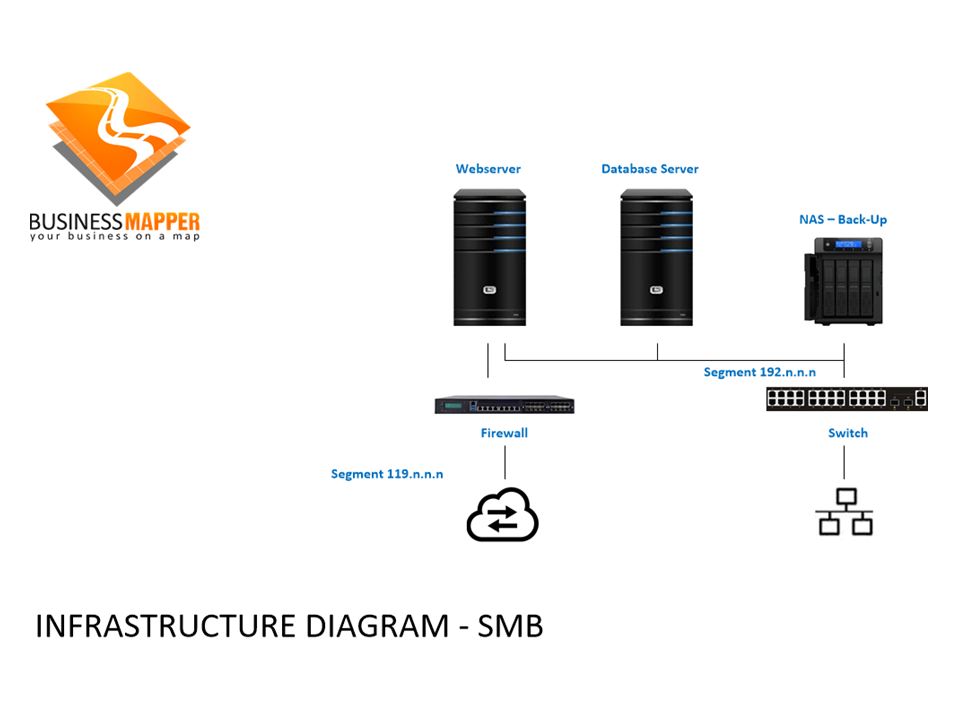

Small-Medium Hardware Configuration

Typical SMB hardware setup for Business Mapper.  Please note that the web-server can be hosted on-premise or on Microsoft Azure.

SMB configuration is designed up to 50 field personnel.

Web-Server Specifications

• IBM x3100, Quad Core CPU (or equivalent)
• 16 GB RAM
• 2 x 300 GB SAS 15,000 RPM Disks (Raid 1)
• 2 x 300 GB SAS 15,000 RPM Disks (Raid 1)
• Windows 2012 Server STD Edition
• Anti-Virus Software

Database Specifications

• IBM x3100, Quad Core CPU (or equivalent)
• 32 GB RAM
• 2 x 300 GB SAS 15,000 RPM Disks (Raid 1)
• 2 x 600 GB SAS 15,000 RPM Disks (Raid 1)
• Windows 2012 Server STD Edition
• Microsoft SQL Server STD Edition
• Anti-Virus Software

Others

• 1 GB Switch
• 1 Mbps Bandwidth
• Firewall Appliance
• Optional NAS Back Up

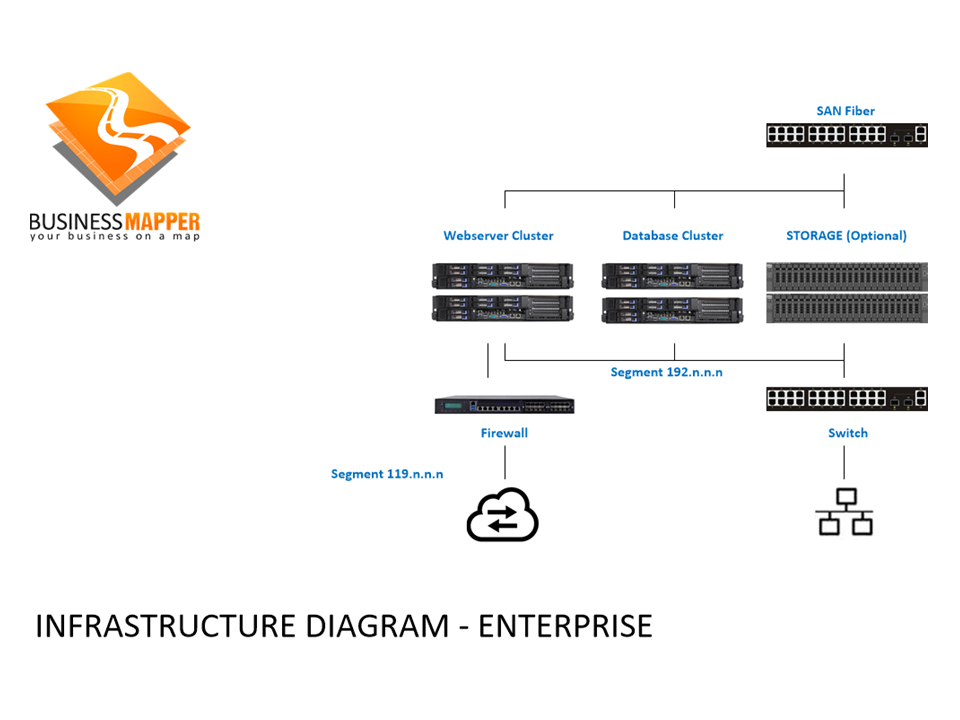

Enterprise Hardware Configuration

Typical Enterprise hardware setup for Business Mapper.  Please note that the web-server can be hosted on-premise or on Microsoft Azure.

Enterprise configuration is designed for up to 500 field personnel and 5 year data retention of photos and data.

Web-Server Specifications

• 2x IBM x3650 M5, Quad Core CPU (or equivalent)
• 64 GB RAM
• 2 x 300 GB SAS 15,000 RPM Disks (Raid 1)
• 2 x 600 GB SAS 15,000 RPM Disks (Raid 1) or Storage Disks on SAN (Sizing will depend on actual requirements)
• Windows 2012 Server STD Edition
• Anti-Virus Software

Database Specifications

• 2x IBM x3650 M5, Quad Core CPU (or equivalent)
• 64 GB RAM
• 2 x 300 GB SAS 15,000 RPM Disks (Raid 1)
• 2 x 1 TB SAS 15,000 RPM Disks (Raid 1) or Storage Disks on SAN (Sizing will depend on actual requirements)
• Windows 2012 Server STD Edition
• Microsoft SQL Server STD Edition
• Anti-Virus Software

Others

• 1 GB Switch
• 2 Mbps Bandwidth
• Firewall Appliance
• Optional SAN Housing
• Optional SAN Switch

Business Mapper Workstations

Business Mapper requires large display monitors and fast graphics cards.  Recommended setup for workstations.

• Quad Core CPU
• 8 GB of RAM
• 100 GB of Free Diskspace
• 21" and up Monitor
• 1 GB Video Card
• Windows 7 and Up

Live Connect Devices

Any android phone that has the following

• GPS Chip
• Data Plan
• Camera

We have tested the following brands

• Samsung
• Cherry Mobile
